Edge Routing¶
The EdgeRouting interface provides a way to customize the computation of paths of the network-area diagram.
The chosen edge routing can be specified through NadParameters::setEdgeRouting.
Note that, internally, the edge routing is passed to the SvgWriter which launches the computation.
Currently, there are 2 implementations of the EdgeRouting: the StraightEdgeRouting and the CustomPathRouting.
The default implementation if none specified is the StraightEdgeRouting.
Common features¶
The common features are factorized in the abstract class AbstractEdgeRouting.
Loops¶

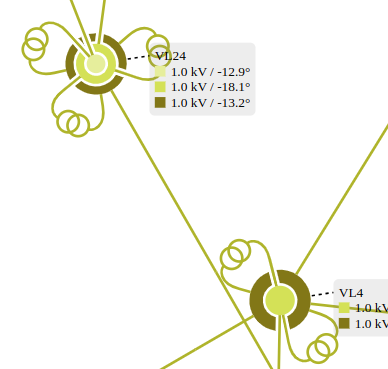

The loop edges points are computed so that they are distributed between branch edges when the space available is big enough.
Injections¶

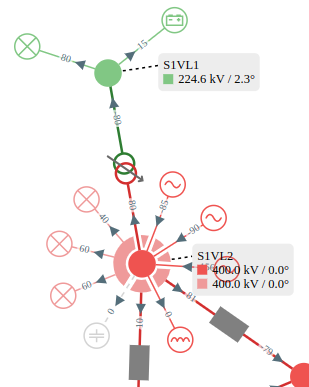

If injections are displayed, the injection edge points are computed similarly to loops: they are distributed between branch edges when the space available is big enough.
Three-winding transformers¶
The three-winding edge points are computed by finding a “leading” transformer edge and then placing the other edges at 120°. The leading edge is defined as the opposite edge of the smallest aperture.
StraightEdgeRouting feature¶
In the StraightEdgeRouting implementation,
the parallel edges points are computed so that they form a fork,
the other edges points are computed as straight lines.
CustomPathRouting feature¶

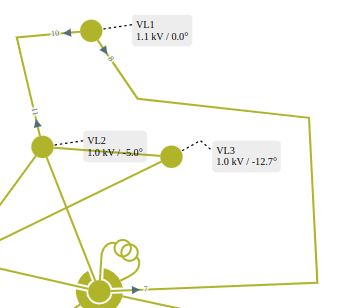

In the CustomPathRouting implementation, custom paths can be provided through two maps in the constructor
a map whose keys are branch ids and whose values are the list of “bending” points to add to the corresponding branch edge,
a map whose keys are voltage level ids and whose values are the list of “bending” points to add to the corresponding text edge.
If a branch id is missing in the given map, we fall back to StraightEdgeRouting implementation.
Similarly for text edges, if a voltage level id is missing in the corresponding map, we fall back to StraightEdgeRouting implementation.
